- Place of Origin: Guangdong, China (Mainland)
- Brand Name: unilumin
- Model Number: Usurface6

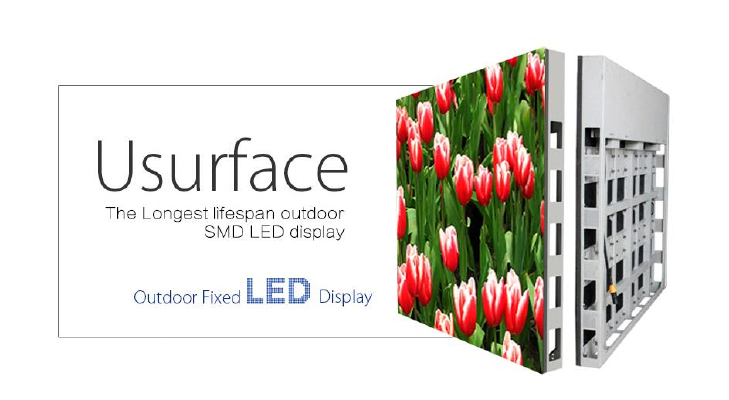

Usurface6(The longest lifespan outdoor SMD LED display)
Features:
1.Ultra slim and light
2.Cabinet IP65, module IP68, anti 14 grade storm and erosion, verified all-weather resistance performance.
3.Fan-less design to create quiet working condition
4.Module front maintenance available. Cabinet front/rear service available; quick installation and dismounting with few simple tools.
5.High contrast ratio, high gray scale, wide viewing angle.
6.Lowest radiation, lowest harm to body and highest stability of signal transmission.
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: unilumin
- Model Number: Usurface6
Usurface6(The longest lifespan outdoor SMD LED display)
Features:
1.Ultra slim and light
2.Cabinet IP65, module IP68, anti 14 grade storm and erosion, verified all-weather resistance performance.
3.Fan-less design to create quiet working condition
4.Module front maintenance available. Cabinet front/rear service available; quick installation and dismounting with few simple tools.
5.High contrast ratio, high gray scale, wide viewing angle.
6.Lowest radiation, lowest harm to body and highest stability of signal transmission.
Parameter | Value |
Pixel Pitch | 6.667mm |
Pixel configuration | 1R1G1B |
LED type | SMD3535 | SMD4540 |
Brightness | 5500 cd/m² | 6000 cd/m² |
Color temperature | 1000K to 9500K can be adjust |
Viewing angle | H: 140°; V:120° |
Pixel density | 22500 pixels /m² |
Recommended viewing distance | ≥6.7 M |
Module size | 200mm×400mm |
Cabinet size | W1200mm×H1200mm×D85mm |
Weight | 40 kg/panel |
Area | 1.44 m² |
Material | Sheet metal aluminum |
Aspect ratio | 1:1 |
Ingress protection | IP65/IP54 |
Operating Temperature/Humidity | -20℃~ 50℃/10~90%RH |
Storage Temperature/Humidity | -30℃~ 60℃/10~90%RH |
Pixels per panel | 180×180 Dots |
Color | 281.4 trillion |
Brightness control | Manual/Automatic |
Contrast ratio | 6000:1 |
Video frame rate | 50/60 Hz |
Rate refresh | 3200 Hz |
Input voltage | 85~264VAC |
Input power frequency | 47~63 Hz |
Input power <max> | 800W/panel | 890W/panel |
Input power <typical> | 267W/panel | 297W/panel |
Life Time | ≥100,000 Hours |
LED Wavelength | R:620~630nm G:520~535nm B:465~475nm |
Driving Method | 1/5 duty Current Drive |
Input signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
Rigging form | Fixed |
Data interconnection | CAT5 Cable ) ( L≤140m ); multi-mode fiber ( L≤500m ); single mode fiber ( L≤20km ) |
Note: The power is reference,specification subjected to change without prior notice. |
