- Place of Origin: Guangdong, China (Mainland)
- Brand Name: unilumin
- Model Number: Ustorm20

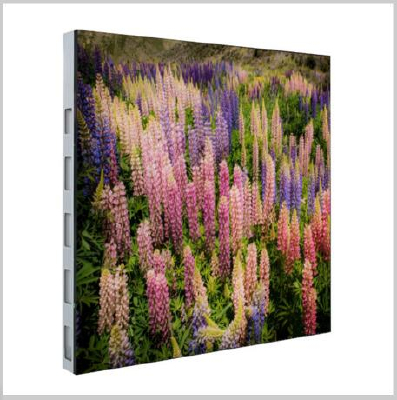

Ustorm20(Outdoor Fixed LED display)
Features：
1.New generation of super-thin LED displayscreen, with high brightness and wide view angle
2.High grey level and high refresh rate,obtain ultimate visual impact even under solar direct radiation, naturalperformance
3.Low power consumption, metal cooling structure,noise-free, long life span
4.High level of water-proof and dust-proof (frontIP 65/ rear IP 54), adapt to extreme heavy weather
5.Support front and rear maintenance, savinghuman cost
6. Cabinet size optional: 1200*1200mm or 800*800mm
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: unilumin
- Model Number: Ustorm20
Parameter | Value | |
Pixel Pitch | 20mm | |
Pixel configuration | 1R1G1B | |
LED type | DIP346 | |
Brightness | 7000 cd/m2 | |
Color temperature | 3000K to 10000K can be adjust | |
Viewing angle | H: 140°（ 70°/-70°）; V:60°(-30°/ 30°) | |
Pixel density | 3600 pixels/m2 | 2500 pixels/m2 |
Recommended viewing distance | ≥20 M | |
Module size | 199.6mm×399.6mm | |
Cabinet size | W1200mm×H1200mm×D124mm | W800mm×H800mm×D119mm |
Weight | 50.5 kg/panel | 20 kg/panel |
Area | 1.44 m2 | 0.64 m2 |
Material | Epoxy Paint Coated Aluminum | |
Aspect ratio | 1:1 | |
Ingress protection | IP65/IP54 | |
Operating Temperature/Humidity | -20℃~ 50℃/10~90%RH | |
Storage Temperature/Humidity | -30℃~ 60℃/10~90%RH | |
Pixels per panel | 60×60 dot | 40×40 Dots |
Processing depth | 14 bits | 14 bits |
Brightness control | Manual/Automatic | |
Contrast ratio | 2000:1 | |
Video frame rate | 50/60 Hz | |
Rate refresh | ≥2000 Hz | |
Input voltage | 110~240VAC | |
nput power frequency | 47~63 Hz | |
Input power <max> | 500W/m2 | |
Input power <typical> | 166.7W/m2 | |
Driving Method | Constant Current Drive | |
Input signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc | |
Rigging form | Fixed | |
Data interconnection | CAT5 Cable( L≤140m );multi-mode fiber | |
Note: The power is reference, specification subjected to change without prior notice. | ||
