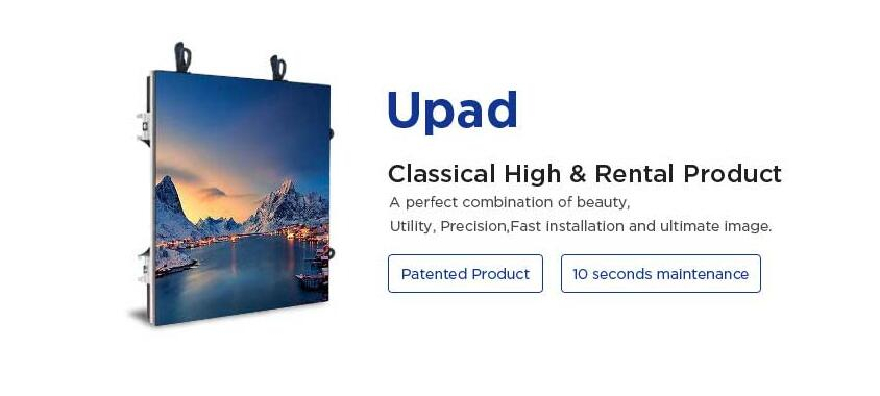

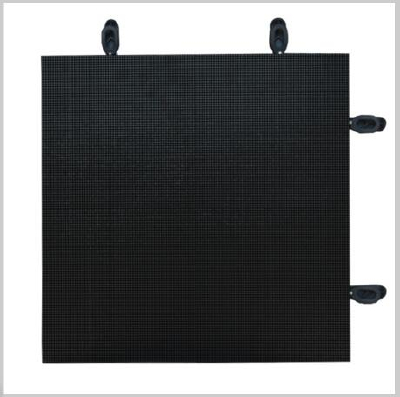

Upad3(Indoor Rental LED Display)
Features：
1.Ultra thin and light
2.Die casting aluminum cabinet with seamless assembling design
3.Extremely high refresh rate, grey scale and contrast ratio
4.Easy to transport and install, one person can assemble 60 cabinets per hour
5.Module front accessible, each cabinet can be taken out from the whole screen freely
6.Particular buckle design facilitates tool-free fast assembling
7.Consistent supply of product as well as spare parts
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: unilumin
- Model Number: Upad3
Parameter | Value |
Pixel Pitch | 3.75mm |
Pixel configuration | 1R1G1B |
LED type | 3-in-1 Black SMD2121 |
Brightness | 1000cd/㎡ |
Color temperature | 2000～9300K |
Viewing angle | H: 120°; V:100° |
Physical density | 71111pixels/㎡ |
Recommended viewing distance | 3.75M |
Panel diagonal size | 678.8225 mm |
Cabinet size | W480m×H480mm×D86mm |
Weight | 10 kg/panel |
Area | 0.2304㎡ |
Material | Die-casting Aluminum |
Aspect ratio | 1:1 |
Ingress protection | IP30 |
Operating Temperature/Humidity | -10℃~ 45℃/10~80%RH |
Storage Temperature/Humidity | -40℃~ 60℃/10~90%RH |
Pixels per panel | 128×128 Dots |
Processing depth | 16bits |
Gray scale | 16384 levels per color |
Color | 281.4 trillion |
Brightness control | Manual/Automatic |
Contrast ratio | 5000:1 |
Video frame rate | 50/60 Hz |
Rate refresh | ≥3840Hz(EMC)/2880Hz（EMC） |
Input voltage | 110-220VAC±10% |
Input power frequency | 50~60Hz |
Input power <max> | 125W |
Input power <typical> | 42W |
Life Time | ≥100,000 Hours |
LED Wavelength | R:620~630nm G:520~535nm B:465~475nm |
Driving Method | 1/8 Scan, Constant Current |
Input signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
Rigging form | Hanging/Fixed with support bracket |
Data interconnection | CAT5 Cable( L≤140m)； multi-mode fiber( L≤500m)； Single mode fiber( L≤20km ) |
Note: The power is reference, specification subjected to change without prior notice. | |
