- Place of Origin: Guangdong, China (Mainland)
- Brand Name: unilumin
- Model Number: UTV2.5

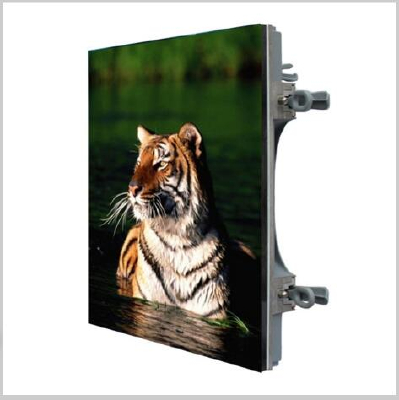

UTV2.5(2.5mm LED display)
Features：
1.Leading technology of high grey level and low brightness, contrast ratio 5000:1, processing depth 16bit, refresh rate 3840Hz
2.Wide color range, excellent color uniformity, no rainbow effect, broadcasting strong stability
3.Seamless, bezel-free, size-free splicing with adjusting accuracy is 0.01mm
4.Metal cooling structure, no noise and no fan
5.Die-casting aluminum design, CNC precise processing
6.Modular front maintenance, supporting hot plugging for unit module and wires
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: unilumin
- Model Number: UTV2.5
Parameter | Value |
Pixel Pitch | 2.5mm |
Pixel configuration | 1R1G1B |
LED type | 3-in-1 Black SMD1010/3-in-1 Black SMD2121 |
Brightness | >1000 cd/m² |
Color temperature | 2000-9300K adjustable |
Viewing angle | H: 140°; V:120° |
Pixel density | 160,000 pixels/m² |
Recommended viewing distance | ≥2.5 M |
Module size | 160mm×160mm |
Cabinet size | W480mm×H480mm×D88.24mm |
Weight | 11.5 kg/panel |
Area | 0.2304 m² |
Material | Die-casting Aluminum |
Aspect ratio | 1:1 |
Ingress protection | IP30 |
Operating Temperature/Humidity | 0℃~ 55℃/10~90%RH |
Storage Temperature/Humidity | -10℃~ 55℃/10~90%RH |
Pixels per panel | 192×192 Dots |
Color | 281.4 trillion |
Brightness control | Manual/Automatic |
Contrast ratio | 5000:1 |
Video frame rate | 50/60 Hz |
Rate refresh | ≥2880Hz |
Input voltage | 100-240V~ |
Input power frequency | 50~60 Hz |
Input power <max> | 120W/panel |
Input power <typical> | 40W/panel |
Life Time | ≥100,000 Hours |
LED Wavelength | R:620~630nm G:520~535nm B:465~475nm |
Driving Method | 1/16 Scan, Constant Current |
Input signal | CAT5 |
Rigging form | Stacking |
| Certification | CCC/CE/ETL |
Data interconnection | CAT5 Cable ( L≤140m )；multi-mode fiber ) ( L≤500m )；single mode fiber ( L≤20km ) |
| Gray scale | 65536 levels per color |
Note: The power is reference，specification subjected to change without prior notice. | |
